Elevate your lighting with Diode Dynamics Stage Series Backlit Ditch Light Kit for Tacoma (2024-2025). This kit offers superior lighting and easy installation, ensuring you are prepared for any adventure.

Features

• Perfect Fitment: Bolt-on fitment specifically for 2024-2025 Toyota Tacoma, allowing you to mount two SS3 or SSC2 Backlit Pods above the hood using factory mounting points. No cutting or drilling required.
• Durable Construction: Made from thick-gauge stainless steel, these brackets are designed to withstand the elements without corroding over time. The robust construction minimizes vibration and bouncing while driving.
• Low-Profile Design: The low-profile design reduces glare and does not interfere with the hood's operation.
• Focused Lighting: The custom-engineered TIR optic in the SS3 and SSC2 collects all light from the LED, directing it where needed, improving efficiency, and reducing glare.
• Functional Output: Various beam pattern options, designed with optical simulation modeling, ensure highly functional and efficient lighting.
• Combo Optic: Combines driving and flood optics for versatile lighting needs. Snap-on covers available for added protection and customization.
• Color Options: Available in cool white (6000K) and selective yellow (3000K) for different lighting preferences.
• Power Levels: Choose between Sport and Pro power levels, both using high-intensity LED emitters and TIR optics. Pro offers double the power of Sport.
• Backlight Functionality: Features a brilliant amber backlight for an additional accent light, providing a modern and unique look.
• Proven Reliability: Extensively tested for long-term operation, including temperature, vibration, moisture, and corrosion testing, meeting SAE standards.

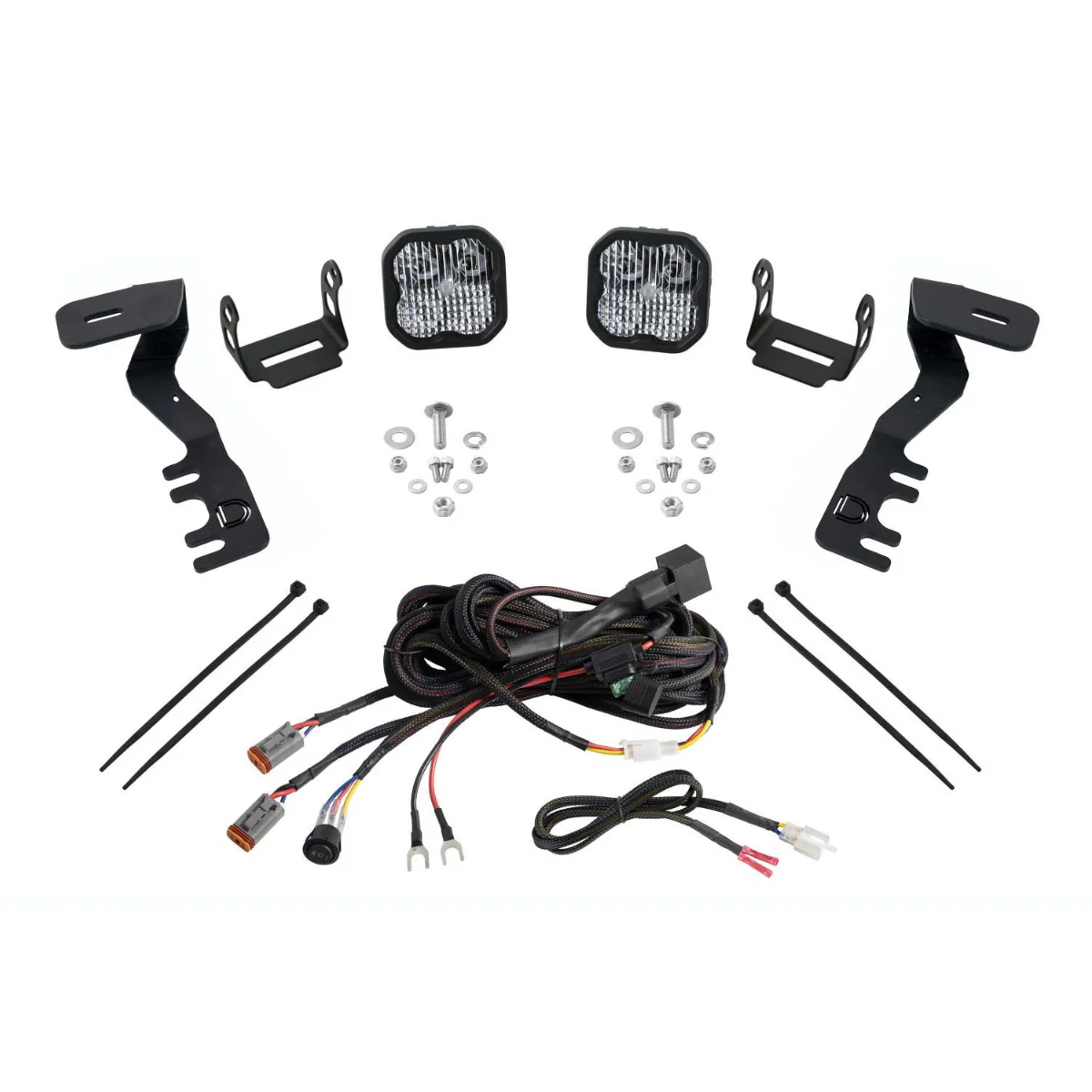

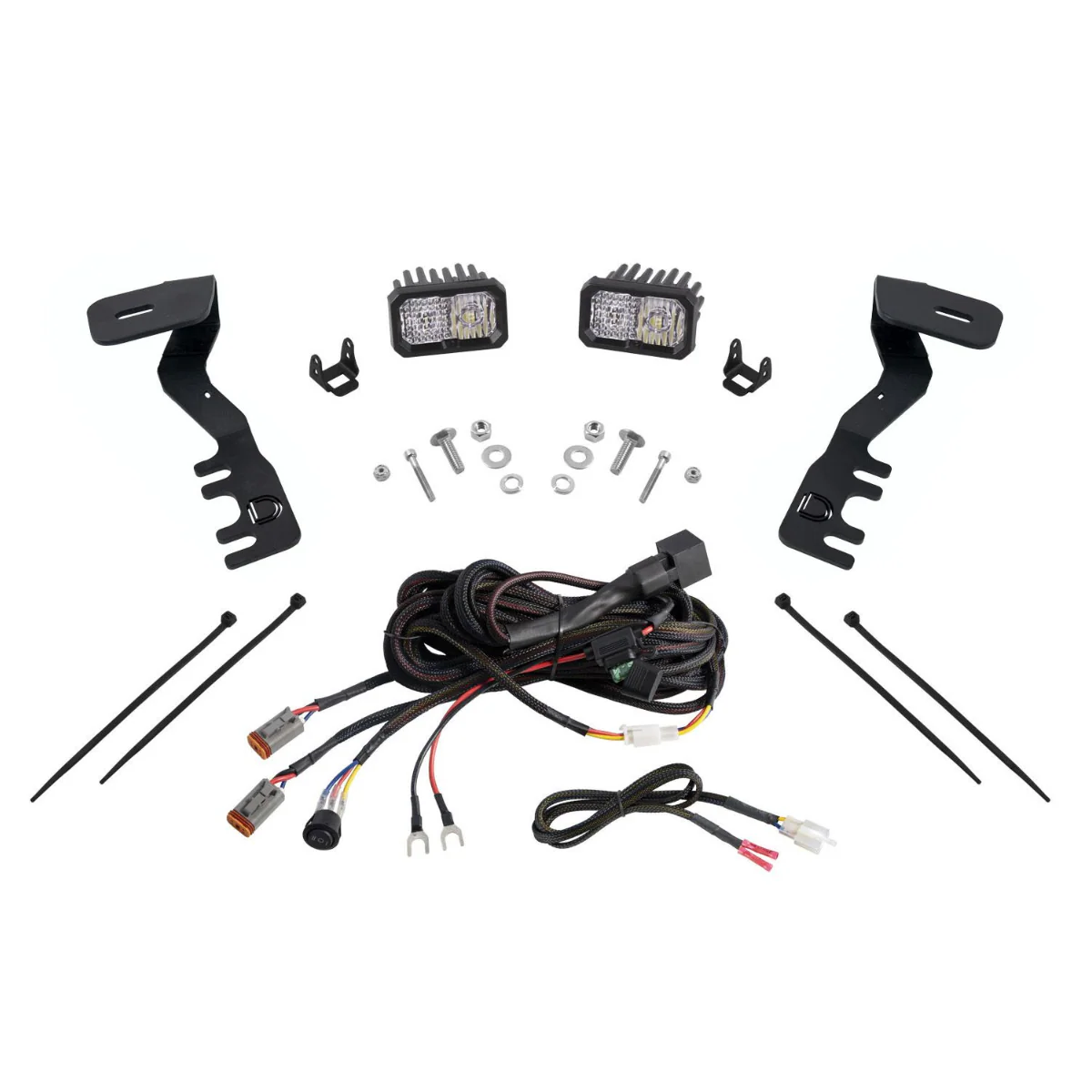

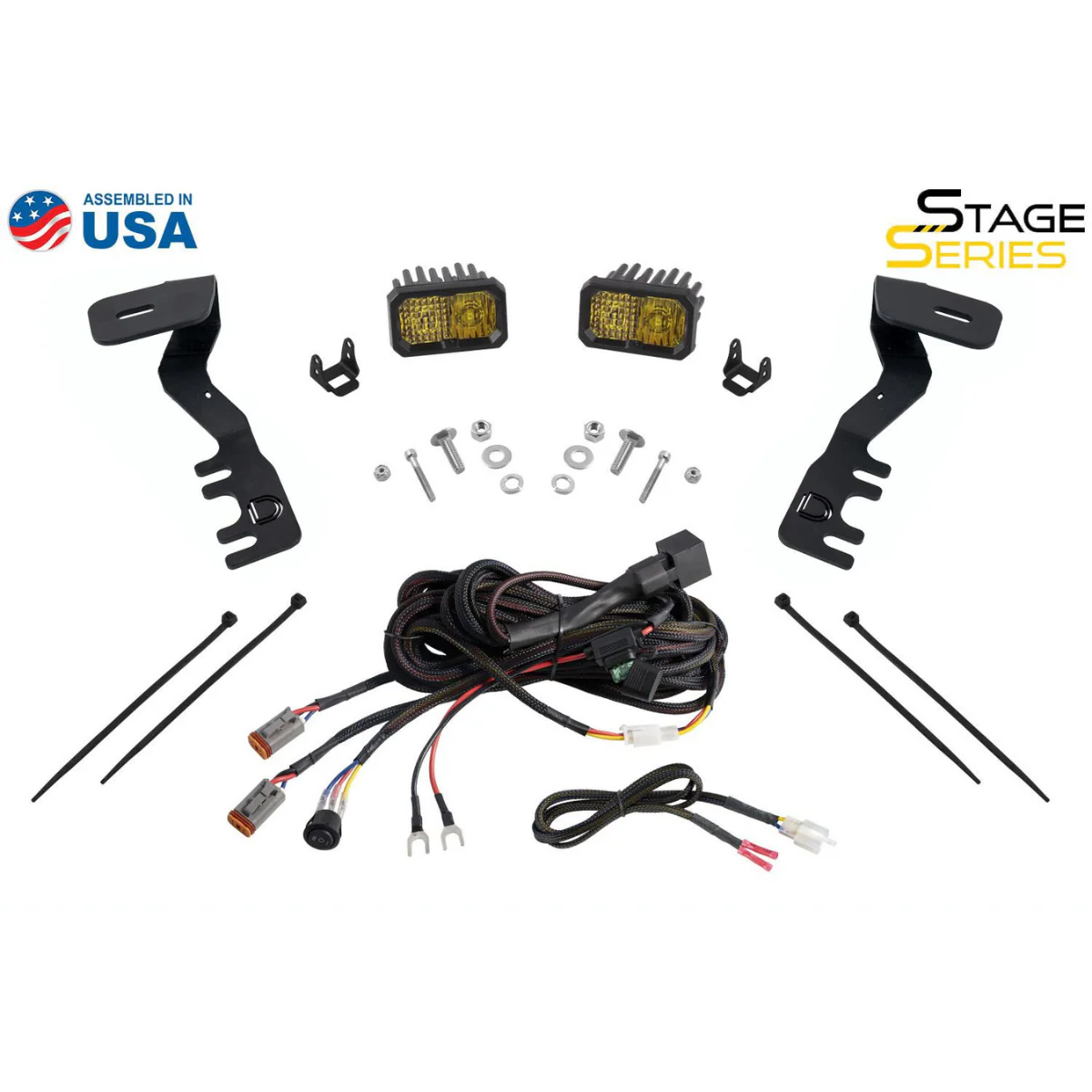

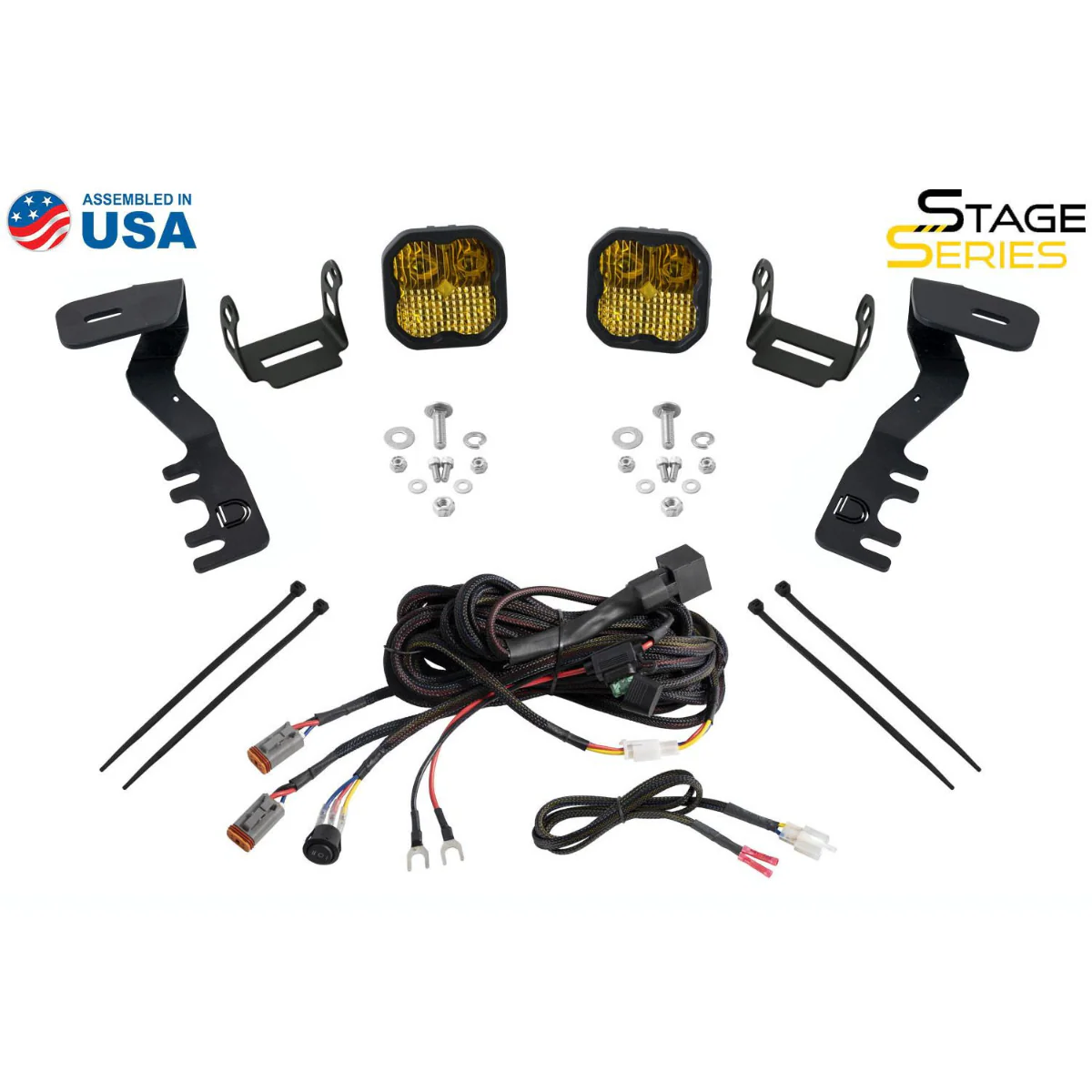

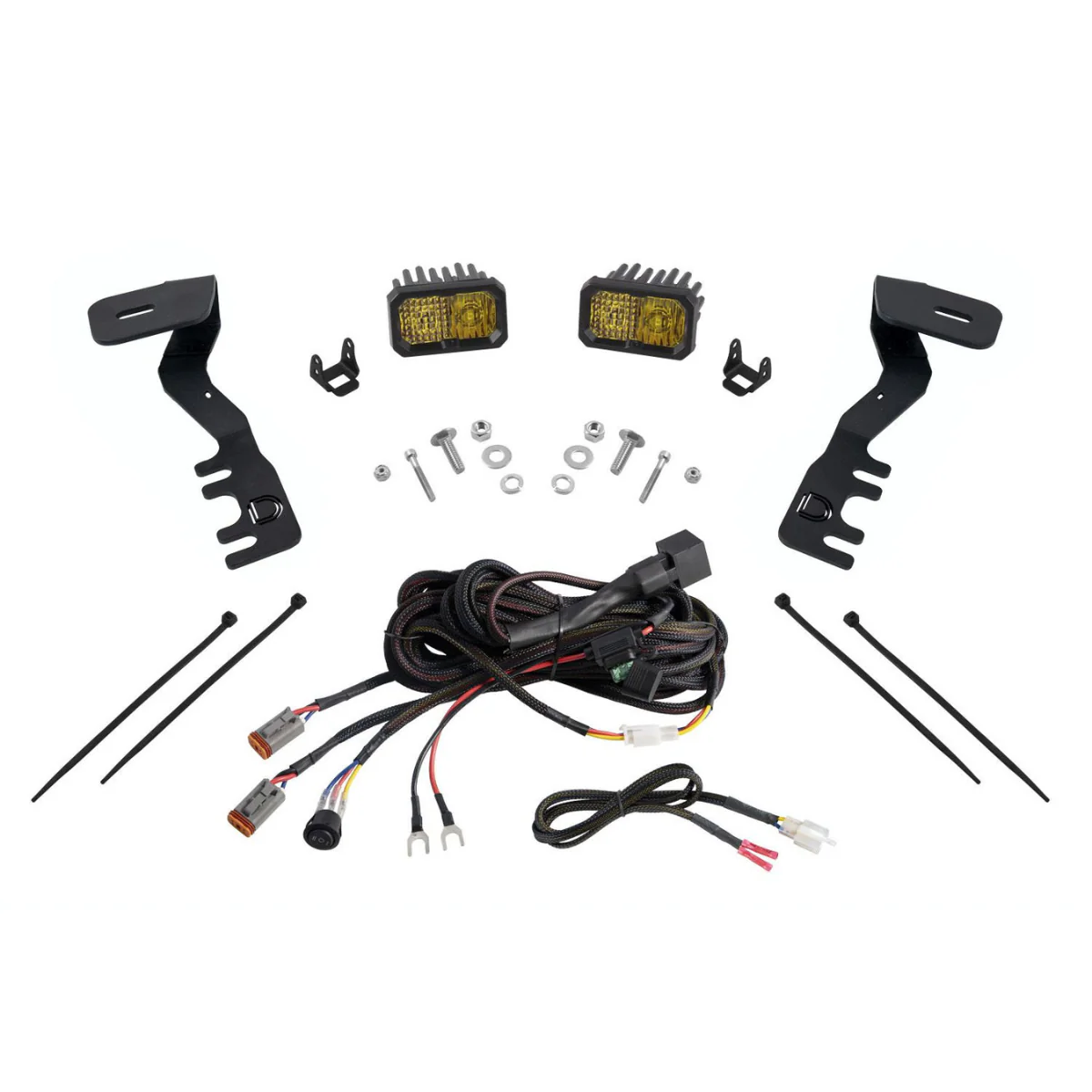

Includes

• Two (2) SS3 or SSC2 Standard LED Pods
• Two (2) Ditch Light Brackets
• Two (2) SS3 or SSC2 Mounting Brackets
• One (1) Heavy Duty Dual Output 4-pin Wiring Harness
• Mounting Hardware
• Mounting Guide

Fitment

• Make: Toyota
• Model: Tacoma
• Years: 2024, 2025

Specifications

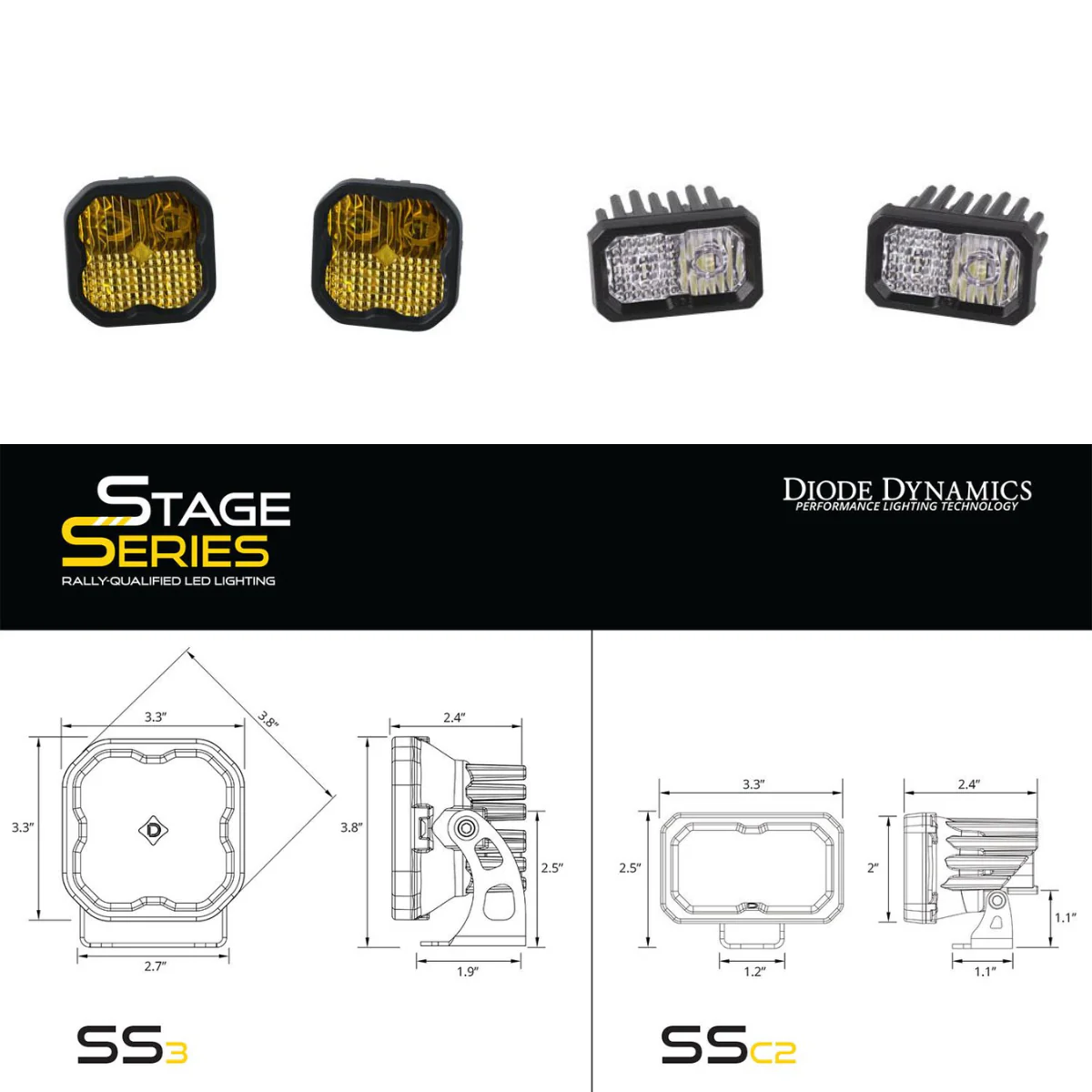

• SS3 LED Pods:

  • Lens Color/Optics: Combo White Sport, Combo White Pro, Combo Yellow Sport, Combo Yellow Pro
  • Peak Beam Intensity: 31,500-35,100 cd (White), 28,100-33,406 cd (Yellow)
  • Illuminance: 315-351 lux (White), 281-334 lux (Yellow)
  • Measured Output: 1,520-3,000 lm (White), 1,300-2,700 lm (Yellow)
  • Raw Output: 2,262-5,796 lm (White), 1,930-5,220 lm (Yellow)
  • Color Temp: 6000K (White), 3000K (Yellow)

• SSC2 LED Pods:

  • Lens Color/Optics: Combo White Sport, Combo White Pro, Combo Yellow Sport, Combo Yellow Pro
  • Peak Beam Intensity: 16,264-27,179 cd (White), 13,534-23,388 cd (Yellow)
  • Illuminance: 163-272 lux (White), 135-234 lux (Yellow)
  • Measured Output: 871-1,988 lm (White), 777-1,858 lm (Yellow)
  • Raw Output: 1,130-2,898 lm (White), 960-2,610 lm (Yellow)
  • Color Temp: 6000K (White), 3000K (Yellow)

Installation

• Time: 20-30 minutes
• Tools Needed: Basic toolset
• Modification: None

Note: Avoid automatic car washes with this kit installed.

Warranty

• 8 Year Limited Warranty: Includes an additional 5 years of protection against manufacturing defects, for a total of 8 years of coverage.
• 100% Satisfaction Guarantee: 30-day return policy with no restocking fee.

Upgrade your Tacoma with the Diode Dynamics Stage Series Backlit Ditch Light Kit and experience unparalleled performance and reliability on your adventures.
